For global contractors, aluminium formwork quality is not proved by a clean-looking panel or one certificate. The delivered system must match approved drawings, include the right accessories, pass trial assembly and produce acceptable alignment and concrete finish. This aluminium formwork quality checklist turns those questions into acceptance gates.
What Should Contractors Define Before Inspecting Aluminium Formwork?
Which Aluminium Formwork Documents Set the Acceptance Baseline?
Start with approved aluminium formwork specifications, shop drawings, panel schedule, material and structural requirements, component list, inspection plan and contract requirements.
A quality checklist is not a universal tolerance sheet. Projects, countries and contracts may use different requirements for dimensions, flatness, load capacity and permitted deviation. Every result should follow:
measured value -> approved drawing or specification -> project acceptance criterion
This traceability is more useful than copying a generic number.
How Should Drawings, Loads, and Interfaces Be Frozen Before Production?
Before fabrication, freeze wall thickness, slab levels, beam dimensions, openings, stairs, sleeves, embeds and MEP interfaces. Confirm the factory is using the current approved revision.
This is the baseline for later panel inspection. A dimensionally accurate panel is still wrong if it follows an obsolete revision.8
Aluminium Formwork Material and Manufacturing Quality Checklist
How Can Contractors Verify Aluminium Alloy and Profile Consistency?
Request the alloy certificate, batch identification and test records. Check profiles and panels for twisting, bowing, inconsistent sections, impact damage and distortion.
GOWE’s aluminium formwork catalogue identifies Aluminium Alloy 6061-T6, with 4 mm panel thickness and listed standard panel ranges. These are GOWE specification examples, not a universal rule that every supplier must use 6061-T6. The project drawing, purchase order and approved material specification remain controlling.
What Machining Accuracy and Panel Geometry Should Be Checked?
An aluminium formwork panel inspection should cover length, width, diagonals, flatness, edge alignment, hole locations and interchangeability between panels with the same code. CNC hole positions deserve special attention because errors accumulate during assembly.
Record the panel code, drawing revision, measuring equipment, measured value and disposition. If a result is outside the criterion, record the non-conformance and correction instead of silently adjusting the panel on site.
Which Weld, Rib, Corner, and Surface Defects Require Attention?
Inspect weld continuity, visible cracks, heat distortion, damaged ribs, deformed flanges, corners, connection holes and panel faces. A crack-free weld may still distort geometry.
Damaged faces, open joints and distorted edges can contribute to leakage, misalignment, surface waves and finishing rework. Assess cosmetic oxidation separately from structural and dimensional defects.

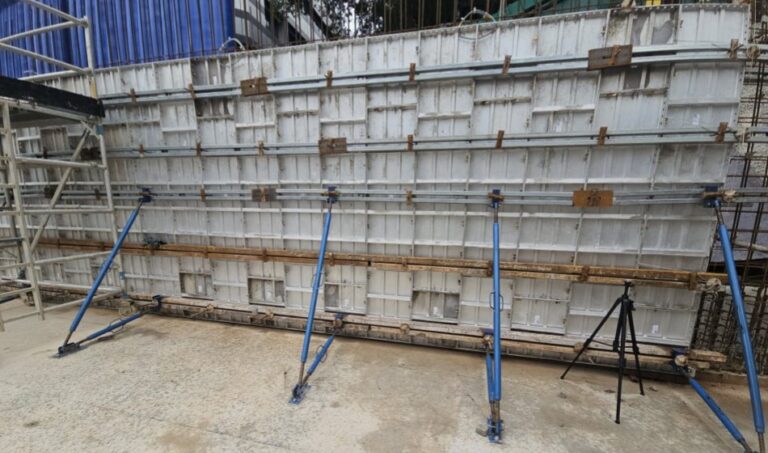

How Should Aluminium Formwork Be Trial-Assembled Before Shipment?
Does the Trial Assembly Match Approved Drawings and Panel Codes?
Factory trial assembly tests the system, not only individual panels. Select a representative area and compare it with approved drawings and panel codes.
Verify walls, columns, beams, slabs, corners and special panels. Confirm readable coding. GOWE carries out customized production according to engineering drawings, and factory trial assembly helps minimize fit-up problems before transport.
The key question is whether qualified panels form a qualified system when assembled together.
Are Connections, Props, Openings, and MEP Interfaces Complete?
Check pins, wedges, ties, props, prop heads, corners and support bases against the component list. Test joint closure, wall-to-slab interfaces, openings, sleeves and embeds.
GOWE’s system includes wall, beam, slab and stair formwork, with pins and wedges for panel connection, steel props for vertical support, hollow sections for straightness, raking shores for verticality and transfer boxes for moving panels. Quantities remain project-specific.
What Should Be Checked During Aluminium Formwork Pre-Shipment Inspection?
The aluminium formwork pre-shipment inspection should verify panel identification, quantities, packing lists, spare accessories, inspection records and damaged or repaired panel status. Packing by floor, zone or code reduces re-sorting after transport.
Check container protection, moisture exposure, lifting arrangements and repaired items. If required, define third-party inspection scope and release authority before shipment.
What Should Contractors Inspect After Aluminium Formwork Reaches Site?
How Should Delivery Damage, Quantities, and Panel Identification Be Checked?
Factory release does not replace aluminium formwork site inspection. After unloading, check bent edges, damaged corners, distorted panels, missing accessories and packaging damage. Match quantities to the packing list and quarantine damaged or unidentified parts.
GOWE uses incoming material inspection, in-production inspection, finished-product inspection, pre-shipment debugging, transportation inspection and controlled transport to site. Contractors should extend that chain with documented incoming inspection and non-conformance control.
What Pre-Pour Aluminium Formwork Checks Prevent Rework?
An aluminium formwork pre-pour checklist should cover:
- control lines and kicker level;
- panel alignment, wall verticality and slab level;
- joint tightness and connection pins or wedges;
- props, prop heads, support bases and stability;
- openings, sleeves and embedded items;
- cleanliness, release agent and access for inspection.
Hollow sections support wall straightness and a flat wall surface, while raking shores adjust verticality. The project’s approved formwork acceptance criteria still control release. For related slab coordination issues, see GOWE’s Slab Formwork for High-Rise Buildings.
What Should the First Pour Reveal About Aluminium Formwork Quality?
Factory inspection is not the end of system verification. After the first floor or typical zone, inspect leakage, bulging, misalignment, unexpected movement, surface waves, honeycombing around interfaces, opening geometry and recurring repairs.
Classify each defect as design, manufacturing, installation, concrete placement or handling. This prevents every defect being blamed on formwork.
How Should Global Contractors Compare Aluminium Formwork Suppliers?
Which QA/QC Records and Third-Party Inspections Matter Most?
Compare the supplier’s complete chain, not the number of certificates:
incoming material inspection -> in-process inspection -> finished-product inspection -> trial assembly -> pre-shipment inspection
Ask for CNC, welding and first-piece inspection records, non-conformance handling and measuring-equipment control. The audit should show how a failed panel is corrected and released.
For a broader procurement comparison, see GOWE’s Aluminium Formwork Suppliers: Key Checks Before Placing an Order. If the contract allows third-party inspection, define scope and acceptance authority; no one agency is mandatory for every project.
How Should Reuse Life and Repairability Affect Aluminium Formwork Value?
Do not compare suppliers only by purchase price per square metre or a headline reuse-cycle number. Evaluate usable cycles, repair requirements, spare availability, cleaning, release-agent practice, handling, storage, transport protection and downtime.
Panel deformation, edge damage, hole wear and weld condition often matter more than a marketing claim. Reuse life is a management and material result.
How Does GOWE Fit an Aluminium Formwork Quality Checklist?

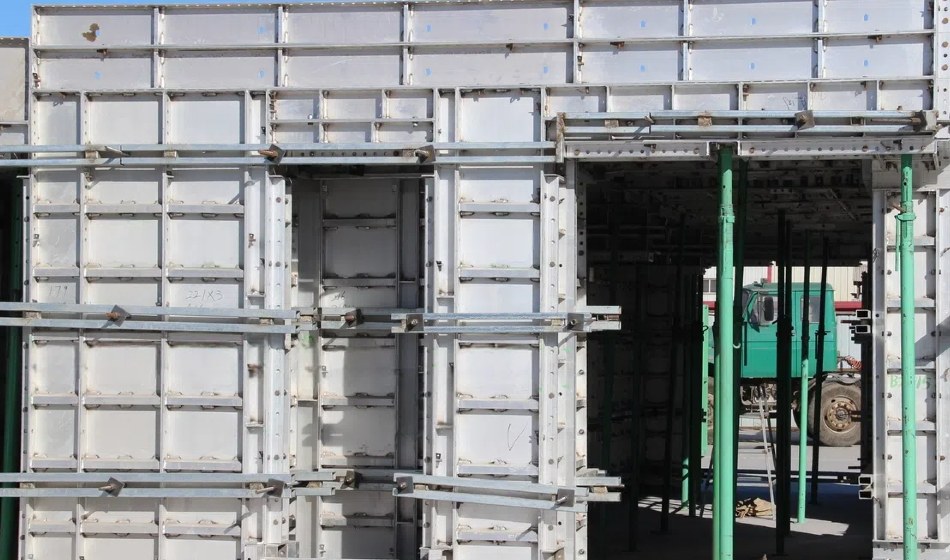

GOWE works across formwork and scaffolding systems, with integrated research and development, production, sales, leasing, construction and operation. We apply the checklist to GOWE’s Aluminium Formwork System as a practical supplier-specification example.
The checks include the stated 6061-T6 alloy, wall, column, beam, slab and stair coverage, panel and frame construction, welding information, trial assembly, quality-control stages and transport controls. One supplier specification is not a global standard; it is a model for connecting drawings, records, inspection and first-pour evidence.
FAQ
Q: What quality checks should contractors perform before buying aluminium formwork?
A: Confirm approved drawings, material and structural specifications, component lists, inspection plans, alloy records, panel geometry, accessories, trial assembly, packing, traceability and pre-shipment inspection. Link results to project criteria.
Q: How can contractors verify aluminium formwork material quality before shipment?
A: Request material certificates, batch identification and test records. Inspect profiles for twisting, bowing, inconsistent sections, distortion and damage, then compare them with approved purchase documents.
Q: What tolerances should be checked during aluminium formwork inspection?
A: Check dimensions, diagonals, flatness, hole positions, edge alignment, interchangeability, verticality and joint closure. Use the approved drawing, specification, contract and local requirements; there is no universal tolerance.
Q: Why is trial assembly important for aluminium formwork quality control?
A: Trial assembly tests whether panels, connections, props, openings, MEP interfaces and codes work as a system. It exposes fit-up problems before shipment.
Q: How often should aluminium formwork be inspected during repeated use?
A: Inspect after delivery, before planned reuse, after dismantling or repair, and during pre-pour release. Increase checks for deformation, damaged edges, worn holes, weld concerns or repeated finish defects.
